Aluminum Expanded Mesh Exterior Wall

Let's Work Together to Create Your Exclusive Expanded Metal Facade

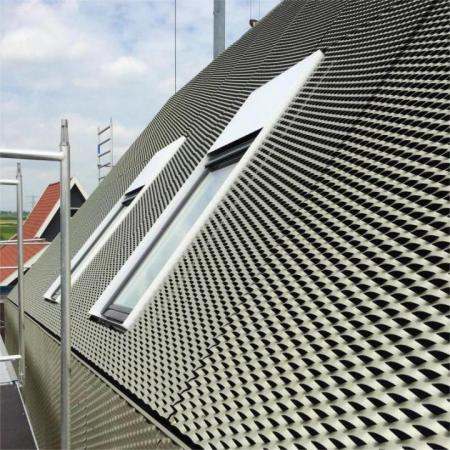

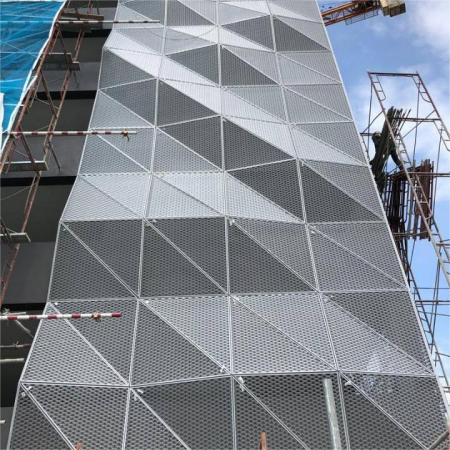

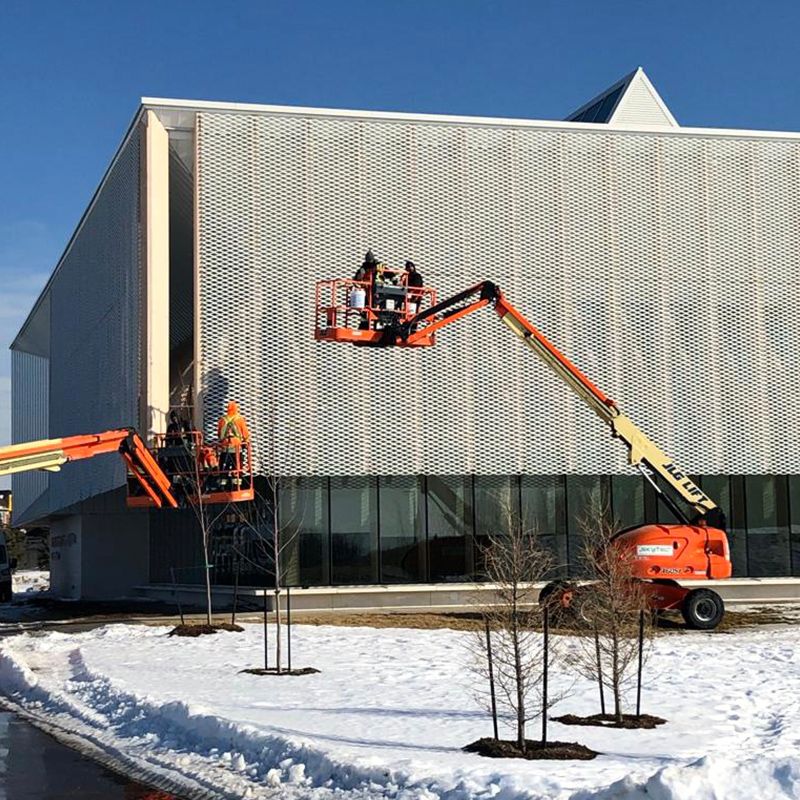

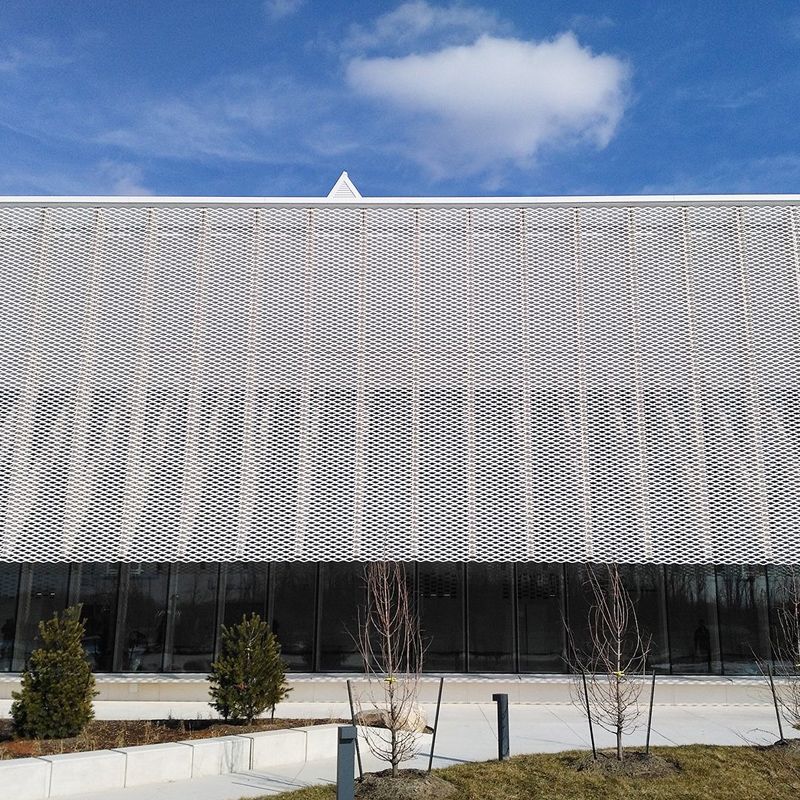

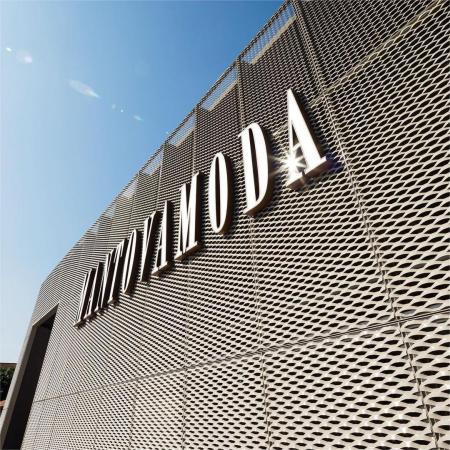

Expanded metal facade is a lightweight wall commonly used in modern large-scale or high-rise buildings to protect and decorate exterior walls. Decorative expanded metal is a popular facade material with extensive hole patterns and diversified colors and is widely used in shopping malls, commercial buildings, hotels, parking lots and other public buildings.

立即咨詢

Aluminum Expanded Metal Panel – Multifarious Hole Sizes and Patterns

Expanded metal facade is generally made of 3 mm – 5 mm thick aluminum plate, lightweight and sturdy. Expanded metal with anodized or PVDF coated finish not only has an attractive appearance, but also delivers excellent weather resistance and a long lifespan. As a result, it gains ever-increasing popularity among architects and designers

Just contact us, and our experienced team will make out custom building facade solution for you.

Aluminum Expanded Mesh Exterior Wall

Features:

· Lightweight yet sturdy structure. It relieves the burden of exterior walls and can withstand harsh weather erosion.

· Ventilation. Uniform opening allows the free passage of light and air.

· Modern decoration style. Come in a variety of hole patterns and colors and bring unique decoration effects for buildings.

· Long service life. Anodized or PVDF coated finish, corrosion resistance and UV resistance.

· Easy installation and maintenance-free

Specification

Recommended Expanded Metal Ceiling Specifications
Material	Thickness (mm)	Strand Width (mm)	SWD (mm)	LWD (mm)	Recommended Size1	Recommended Size2	Remarks
Aluminum	2, 2.5, 3	8, 9, 10	34	75	1220 × 2000	2400×1200
	2, 2.5, 3	8, 9, 10	40	48	1220 × 2000	2400×1200
	2, 2.5, 3	10, 12, 15	50	110	1220 × 2000	2400×1200
	2, 2.5, 3	16, 18, 20	63	150	1220 × 2000	2400×1200
	2, 2.5, 3	25, 28, 30	80	200	1220 × 2000	2400×1200	Hexagonal (knuckle about 40 mm)
	2, 2.5, 3	25, 28, 30	95	250	1220 × 2000	2400×1200
	2, 2.5, 3	25, 28, 30	95	300	1220 × 2000	2400×1200
● Frame size: aluminum angle: 30×30×2 mm and above; for large sizes, 3 mm thickness is recommended; the large the frame, the thicker the aluminum angle. ● Other sizes are available upon request.

相關産品

Perforated Exterior Wall

Perforating can reduce the weight of the panels while not significantly reducing their strength. Besides, there are various materials available for cost consideration.
